Features

• 48 Inches of lenghth
• Part of a family of test accessories ideal for low voltage precision measurements.
• Spade lugs are of high conductivity, gold plated ETP copper alloy 110, to greatly minimizes the effect of Thermal Electric Voltage (Thermal EMF).
• Therma1 EMF is generated at the junction of dissimilar metals at different temperatures
• A common source of error in low micro and nano volt measurements

Specififcations

• Spade Lugs: ETP (Electrolytic Tough Pitch) 110 Copper Alloy, 1/2 Hard, Gold Plated
• Insulation: Polypropylene, molded to spade lug body and wire. Color: Red and Black
• Markin: "POMONA ELECTRONICS CALIF"
• Cable: 12 AWG; Stranding 7 x 38/36 Bare Copper, Braided Bare Copper Shield
• Inner Insulation: Natural Polyethylene, O.D. .144" (3,66mm)
• Outer Jacket: PVC, Color: Black, O.D. .246" (6,25mm)
• Marking: "POMONA 1756-XX"
• Shield Lead: 18 AWG, Stranding 65 x 36 t.c., PVC Insulated, O.D.: .144" (3,66)
• Operating Voltage: 2000 VRMS/DC
• Operating Temperature: 55°C ( 131°F). Max
• Current: 20 Amperes Max

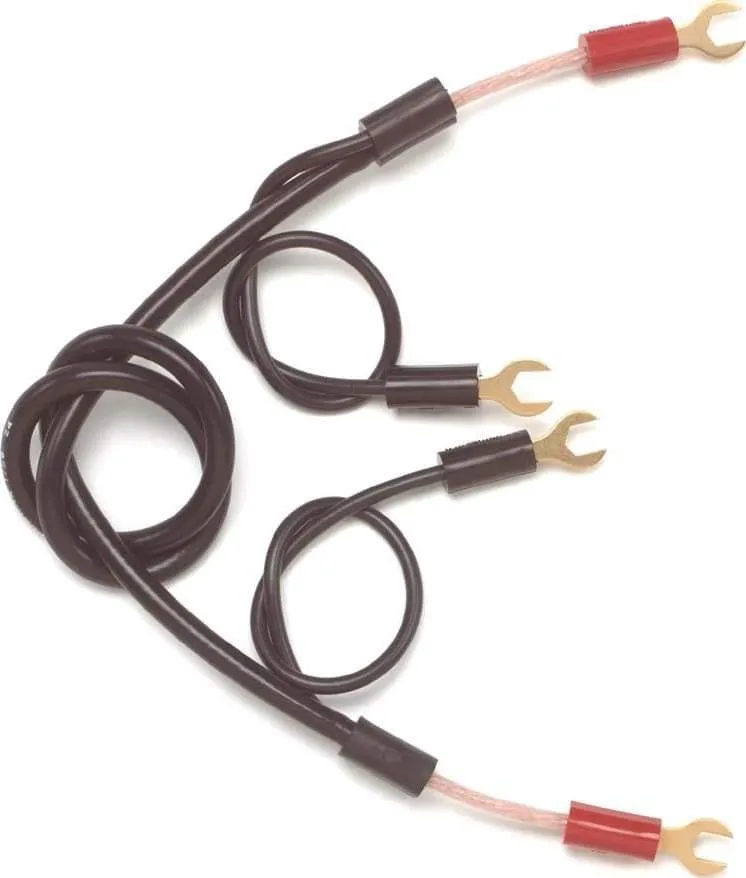

Pomona’s Model 1756 is part of a family of test accessories ideal for low voltage precision measurements. Spade lugs are of high conductivity, gold plated ETP copper alloy 110, to greatly minimizes the effect of Thermal Electric Voltage (Thermal EMF).
